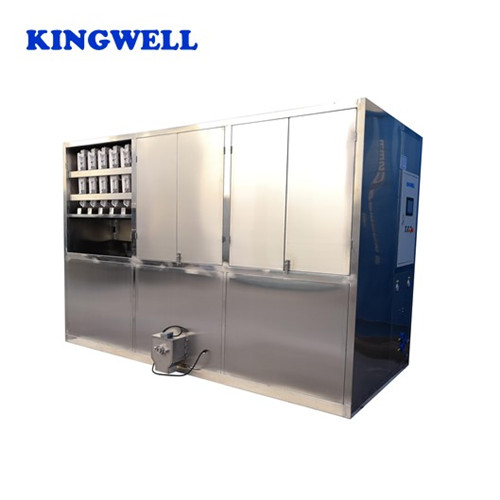

KW-C5 (5tons/day) Cube Ice Machine

  • Product details image
KW-C5 (5tons/day) Cube Ice Machine
Daily capacity: 5 ton/24h Power form: 220/380V,60hz,3p or 380/415V,50hz,3p Refrigerant:R22 or R404a Cube ice size: 22x22x22mm or 29x29x22mm Cooling way: water cooling with cooling tower

Cube ice:

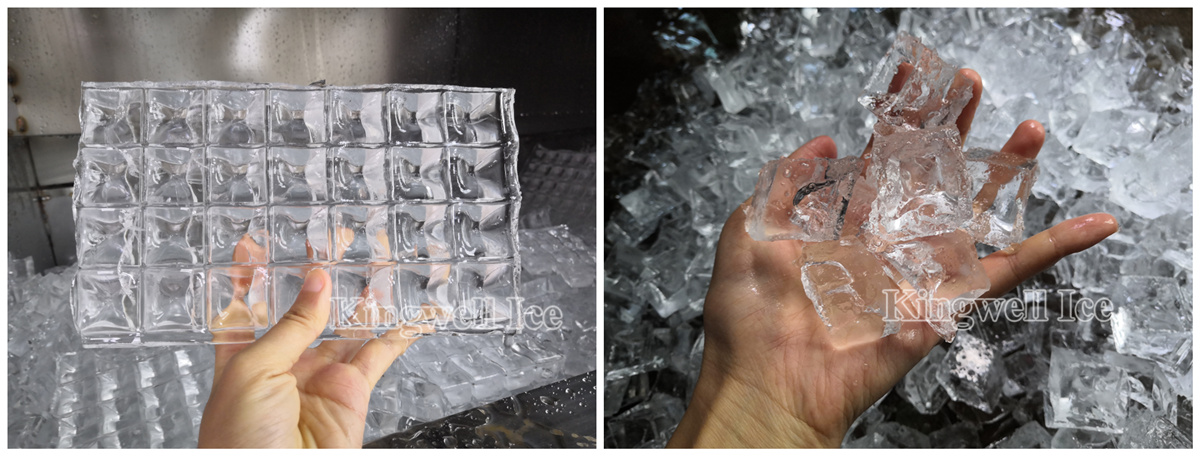

Kingwell KW-C5 cube ice machine can produce 5 tons cube ice in 24 hours (Well call this machine in short of KW-C5), the ice is bright crystal, clean and beautiful cube ice. In order to meet different requirements of customers all around the world, we make two different sizes of cube ice: 22X22X22mm or 29X29X22mm.


Size of cube ice

Freezing time/circle

22x22x22mm

18-20 minutes

29x29x22mm

20-23 minutes


it is widely used in hotels, restaurants, bars, banquets halls, fast foodshops, chain stores, cold drink shops, gas station etc.


Features of the machine

  • Food-grade: we use the food-grade material to manufacture the machine, all the parts which are contacting water and ice are stainless steel 304.

  • Easy and safe operation: we use PLC micro-computer program and touch screen to control the machine, so it is easy to operate the machine; all the wires are well-protected, and the Freon gas is a kind of stable and safe gas,so it is safe to operate it.

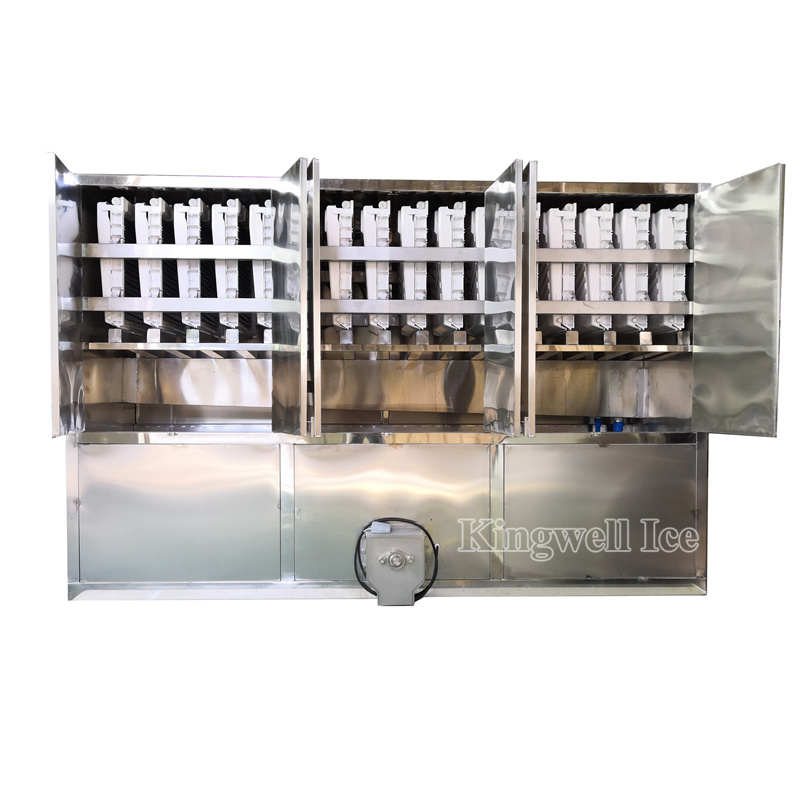

  • Simple and economic packaging system: the cube ice machine is equipped with storage bin a storage bin, there is a screw conveyor on the bottom. While you step on the pedal switch, the ice will come out by screw conveyor, then jump into plastic bags directly. You can use the sealing machine to seal bags well.


  • The ice thickness can be adjusted by the touch screen.



  • The machine will stop automatically when the ice storage bin is full.

  • Power consumption: about70~80KW*H to make 1 ton ice.

Water consumption: about 1.05 tons water to make 1 ton ice.

  • Links of videos about cube ice machine on Youtube:

2 x 3tons/day cube ice plant: https://www.youtube.com/watch?v=hpfInMLNlUE

Cube ice packing process: https://www.youtube.com/watch?v=b0AHB3JeM5E

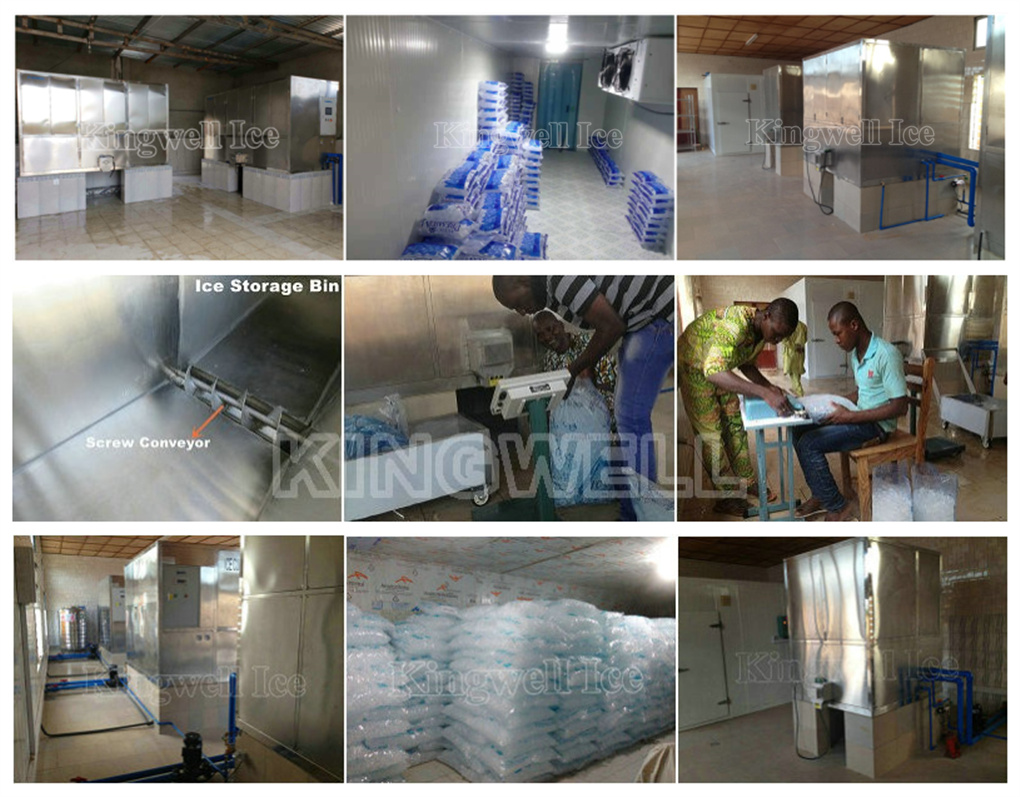

Cube ice production line


Specification

Item

Capacity

(tons/day)

Refrigerant

Compressor

Brand

Compressor

Power(HP)

Cooling Way

Machine Size

(L*W*H, mm)

KW-C 1

1

R404A/R22

Bitzer

4

Water/Air

1700*1230*1970

KW-C 2

2

R404A/R22

Bitzer

8

Water/Air

1730*1520*1640

KW-C 3

3

R404A/R22

Bitzer

12

Water/Air

1980*1360*2080

KW-C 4

4

R404A/R22

Bitzer

15

Water

2620*1940*2040

KW-C 5

5

R404A/R22

Bitzer

25

Water

3110*1940*2040

KW-C 6

6

R404A/R22

Bitzer

30

Water

4000*1940*2190

KW-C 8

8

R404A/R22

Bitzer

40

Water

5070*1980*2300

KW-C 10

10

R404A/R22

Bitzer/Bock

50

Water

5830*1980*2320

KW-C 20

20

R404A/R22

Bitzer/Bock

100

Water

6250*2310*2470

KW-C 30

30

R404A/R22

Bitzer/Bock

150

Water

8660*2310*2470

Power supply380~415V,50Hz, 3 phase;

220~240V, 60Hz, 3phases;

440~480V, 60Hz, 3phases;

380V, 60Hz, 3 phases.

Working Conditions: Input Water Temp: 21℃;

Ambient Temp: 25℃;

Condensing Temp: 40℃;

The actual capacity will be changed by different ambient temperature and make-up water temperature, actually it will reach at 80%, at most 130%.

Guangzhou Kingwell reserves the right to change specifications and design without notice.
