KW-B30 (30tons/day) Spiral Coil-pipe Block Ice Machine
Daily capacity: 30 ton/24h Power form: 220/380V,60hz,3p or 380/415V,50hz,3p Refrigerant:R22 or R404a Block ice weight: 25-100kg/customized Cooling way: water cooling with cooling tower

KW-B30 (30tons/day) Spiral Coil-Pipe Block Ice Machine


Block ice

Kingwell 30 tons spiral coil-pipe ice block machine KW-B30 (we’ll call this machine in short of KW-B30 below) can produce 30 tons block ice in 24 hours, we have different sizes of block ice for your option:

Block ice weight

Ice size (thickness*width*height, mm)

Freezing time (hours)

Frequency of ice making per day (times)

5kg

80*165*500

4.8

5

10kg

100*205*610

/100*260*500

6

4

15kg

100*320*610

6

4

20kg

120*320*750

8

3

25kg

120*360*750

8

3

30kg

150*280*1000

12

2

50kg

150*450*1000

12

2

100kg

210*550*1200

24

1


Our standard design of block ice for KW-B30 is 25kg, but you can choose any of your favorable size, or you can tell us your special size from your market, we can also customize the size and the machine to meet your clients’ requirement.


The block ice is widely used in pelagic fishing, fresh keeping, temperature controlling and ice sculpture. Especially for hot regions, such as Africa, Middle East, Australia, etc.Whats more, the block ice has a dominant advantage than other types of ice, it’s solid, strong and not easy to melt, so it’s perfect matched for transport in long distance and fishing industry.


Features of the machine KW-B30 (spiral coil-pipe evaporator)

  • Spiral coil-pipe: This design adopts spiral coil-pipes evaporator, which contacts salt water directly in the salt water tank, so the refrigeration effect is more efficient, and can help to save more energy, what's more, the spiral coil-pipe is with longer life-span.

.B30 800x22.jpg



  • industrial salt water as media for making ice: We use salt water to make ice, so the refrigeration system is simple, that will assure the simple operation and simple maintenance,very easy to look after and use it.

  • Power consumption: about 70 KW*H to make 1 ton ice, it depends on the ambient temperature.

Water consumption: about 1.1 tons water to make 1 ton ice.


Layout of ice machine and harvest system


B30 800x17.jpg

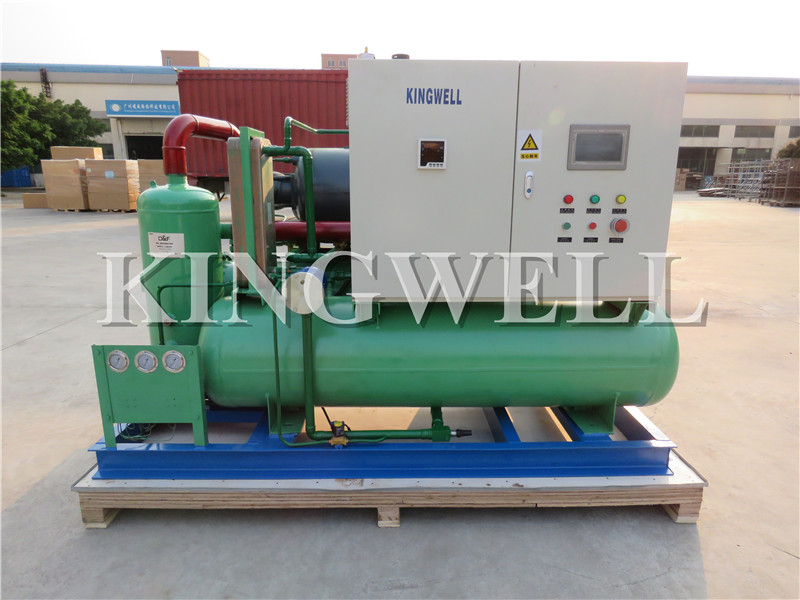

Refrigeration unit


Salt water tank


Salt water tank with ice blocks & crane system for harvesting ice


ice cans in group


block ice frozen in ice cans

Specifications

Item

Capacity
(tons/day)

Refrigerant

Compressor Brand

Compressor
(HP)

Cooling
Way

Dimension
(L*W*H,mm)

KW-B 1

1

R22/R404A

Maneurop

4

Air

2300*1400*660

KW-B 2

2

R22/R404A

Maneurop

8

Water/Air

2450*1010*960

KW-B 3

3

R22/R404A

Bitzer

12

Water/Air

2550*1320*1100

KW-B 4

4

R22/R404A

Bitzer

20

Water

2850*1600*1100

KW-B 5

5

R22/R404A

Bitzer

25

Water

3600*1450*1200

KW-B 6

6

R22/R404A

Bitzer

25

Water

3290*2007*1300

KW-B 8

8

R22/R404A

Bitzer

40

Water

5250*1620*1170

KW-B 10

10

R22/R404A

Bitzer

50

Water

6080*1700*1130

KW-B 15

15

R22/R404A

Bitzer

2*40

Water

7000*2000*1130

KW-B 20

20

R22/R404A

Bitzer/Hanbell

2*50

Water

9985*2007*1200

KW-B 25

25

R22/R404A

Bitzer/Hanbell

3*40

Water

10400*2657*1500

KW-B 30

30

R22/R404A

Bitzer/Hanbell

3*50

Water

7785*1973*1650*2

Power supply380~415V,50Hz,3 phase;

220~240V, 60Hz, 3 phases;

440~480V, 60Hz, 3 phases;

380V, 60Hz, 3 phases.

Working Conditions: Input Water Temp: 21;

Ambient Temp: 25;

Condensing Temp: 40;

The actual capacity will be changed by different ambient temperature and make-up water temperature, actually it will reach at least 80%, at most 130%.

Guangzhou Kingwell reserves the right to change specifications and design without notice.
