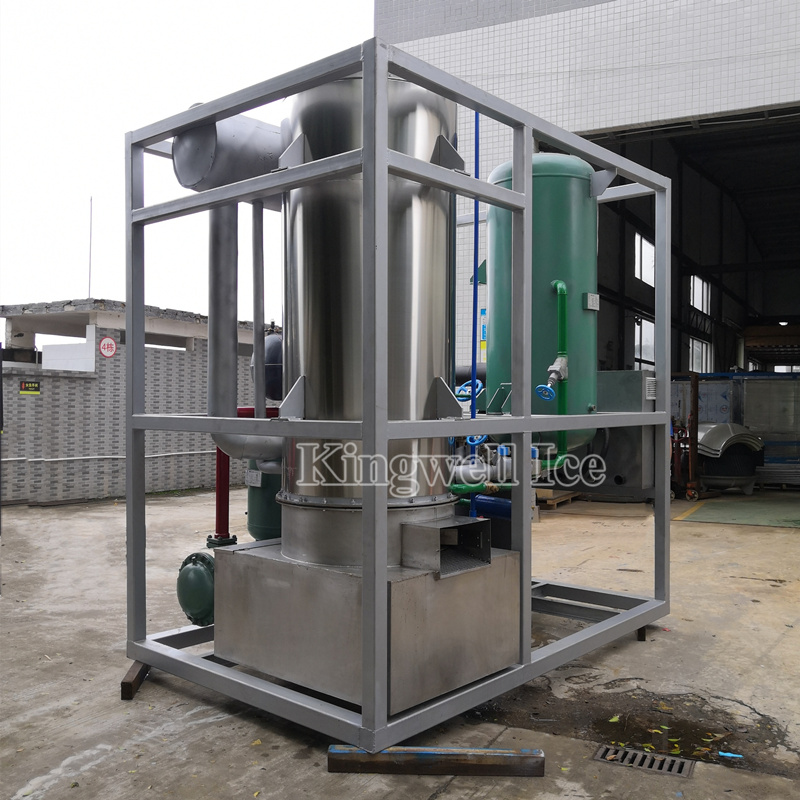

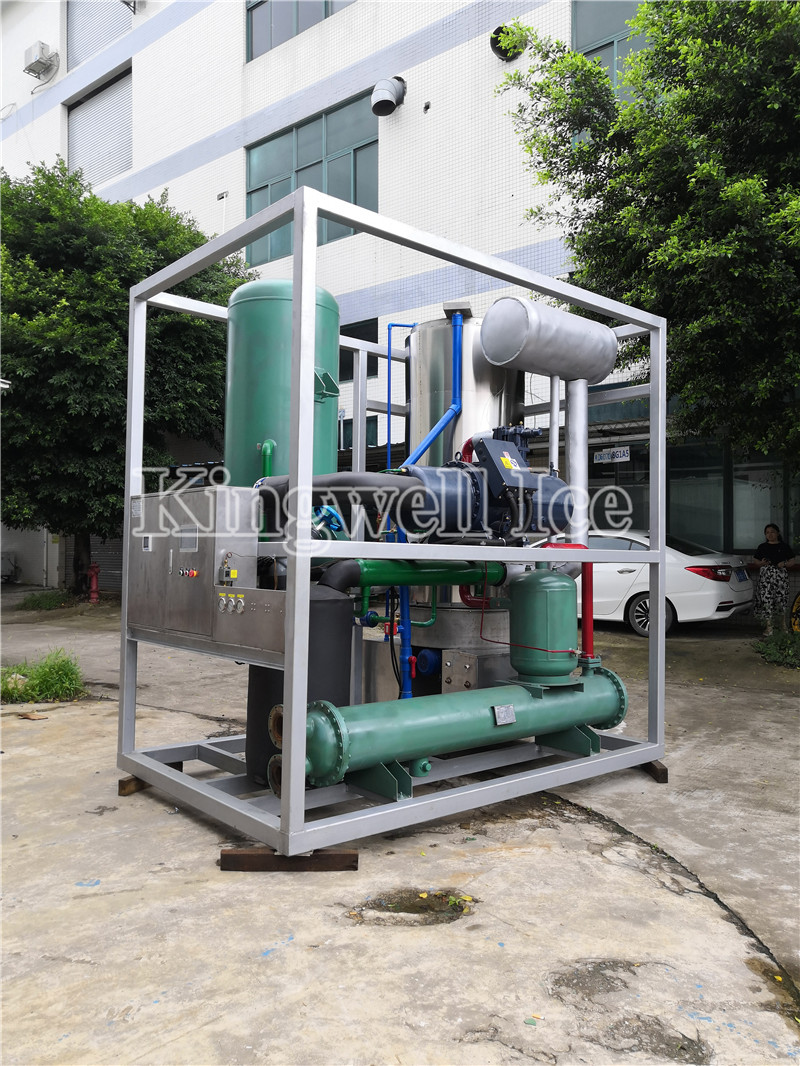

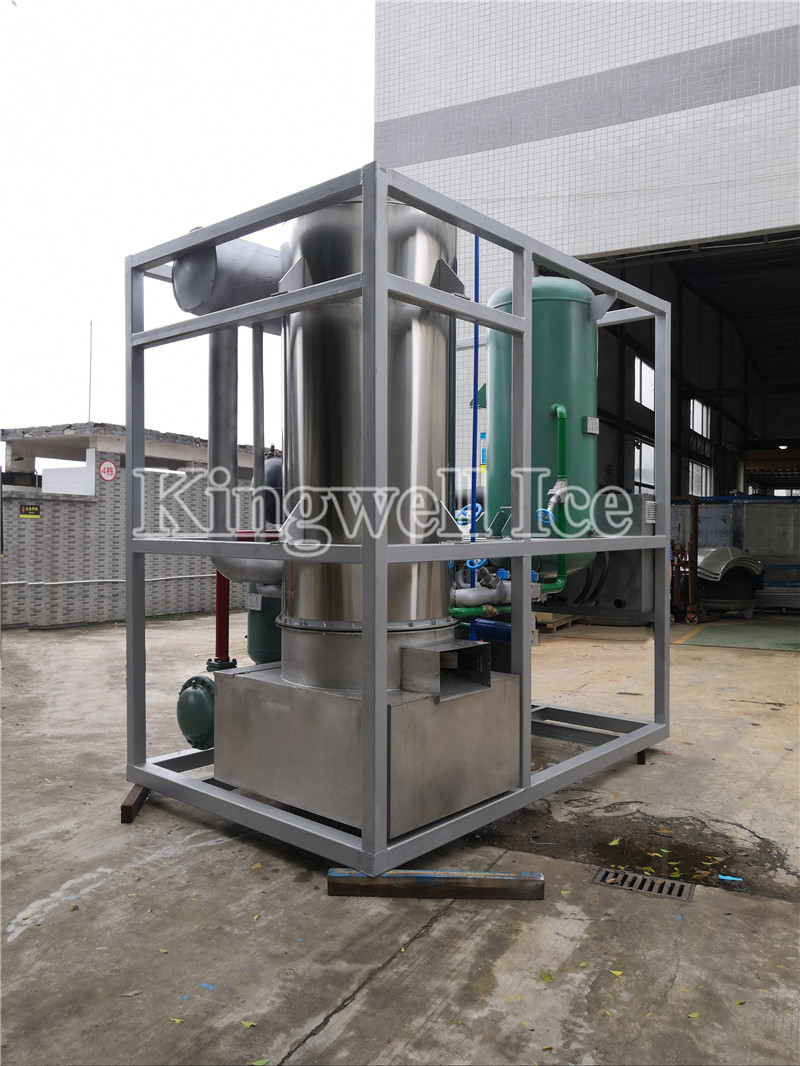

KW-T20 (20tons/day) Tube Ice Machine

  • Product details image
KW-T20 (20tons/day) Tube Ice Machine


Transparent Tube Ice:

Kingwell 20 tons tube ice machine can produce 20 tons tube ice in 24 hours (We’ll call this machine in short of KW-T20), we have different size of diameter for customer’s option: 22mm, 28mm, 34mm, 40mm.

External diameter

Standard length

Freezing time/circle

22mm

30mm

16 minutes

28mm

35mm

18 minutes

34mm

45mm

22 minutes

40mm

55mm

25 minutes


The ice is totally transparent and clear, widely used in different occasion: drinking, fresh maintenance, aquatic food processing, ice plant and gas station, etc.

Features of the machine KW-T20

  • Food-grade: we use the food-grade material to manufacture the machine, all the parts which are contacting water and ice are stainless steel 304.

  • Easy and safe operation: we use PLC micro-computer program and touch screen to control the machine, so it is easy to operate the machine; all the wires are well-protected, and the Freon gas is a kind of stable and safe gas, so it is safe to operate it.


  • Simple and economic packaging system: we can design a storage bin with a screw conveyor on its bottom, so you can take the ice out and pack them into plastic bags easily.

  • Power consumption: about 70~80KW*H to make 1 ton ice.

    Water consumption: about 1.05 tons water to make 1 ton ice.

  • Link of working video of tube ice machine on Youtube:

20 tons tube ice plant: https://youtu.be/-gxenVYFrrk

KW-T5 tube ice machine: https://youtu.be/njQIzFn7GNA

KW-T5 with packing system: https://youtu.be/0zn6x9xi1JI



Simple packaging system


Specifications

Item

Capacity(tons/day)

Refrigerant

Compressor Brand

Compressor(HP)

Cooling Way

Dimension(L*W*H, mm)

KW-T 1

1

R22/R404a

Bitzer

4

Water/Air

1620*1370*2020

KW-T 2

2

R22/R404a

Bitzer

8

Water/Air

1570*915*2230

KW-T 3

3

R22/R404a

Bitzer

12

Water/Air

1660*950*2120

KW-T 5

5

R22/R404a

Bitzer

25

Water

1750*1020*2250

KW-T 10

10

R22/R404a

Bitzer/Bock

2*25

Water

2200*1930*2550

KW-T 20

20

R22/R404a

Bitzer/Bock

2*50

Water

1600*1250*4800

KW-T 30

30

R22/R404a

Bitzer/Bock

3*50

Water

2200*1900*6200

KW-T 50

50

R22/R404a

Bitzer/Bock/Hanbell

200

Water

2000*1800*6800

》 Power supply:380~415V,50Hz,3 phase;

220~240V, 60Hz, 3 phases;

440~480V, 60Hz, 3 phases;

380V, 60Hz, 3 phases.

》 Working Conditions: Input Water Temp: 21℃;

Ambient Temp: 25℃;

Condensing Temp: 40℃;

The actual capacity will be changed by different ambient temperature and make-up water temperature, actually it will reach at least 80%, at most 130%.

》 Guangzhou Kingwell reserves the right to change specifications and design without notice.
