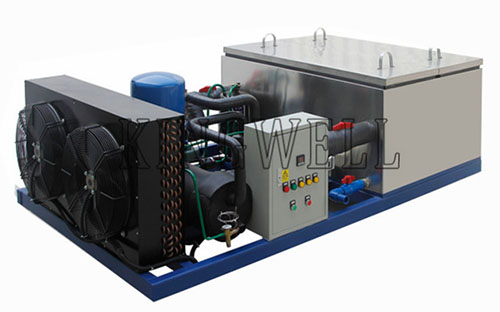

KW-B1 (1ton/day) Block Ice Machine
Block ice
Kingwell 1ton ice block machine KW-B1 (we’ll call this machine in short of KW-B1 below) can produce 1 ton block ice in 24 hours, we have different sizes of block ice for your option:
|
Block ice weight |
Ice size (thickness*width*height, mm) |
Freezing time (hours) |
Frequency of ice making per day (times) |
|
5kg |
80*165*500 |
4.8 |
5 |
|
10kg |
100*205*610 /100*260*500 |
6 |
4 |
|
15kg |
100*320*610 |
6 |
4 |
|
20kg |
120*320*750 |
8 |
3 |
|
25kg |
120*360*750 |
8 |
3 |
|
30kg |
150*280*1000 |
12 |
2 |
|
50kg |
150*450*1000 |
12 |
2 |
|
100kg |
210*550*1200 |
24 |
1 |
Our standard design of block ice for KW-B1 is 5kg or 10kg, so you can get 200 pieces of 5kg block ice, or 100 pieces of 10kg block ice. But you can choose any of your favorable size, or you can tell us your special size from your market, we can also customize the size and the machine to meet your clients’ requirement.
The block ice is widely used in pelagic fishing, fresh keeping, temperature controlling and ice sculpture. Especially for hot regions, such as Africa, Middle East, Australia, etc. What’s more, the block ice has a dominant advantage than other types of ice, it’s solid, strong and not easy to melt, so it’s perfect matched for transport in long distance and fishing industry.
Features of the machine KW-B1
-
Compact design: KW-B1 is designed into only 1 part, so when you get it, you only need to connect water, and put water into the water tank and ice cans, then you can start the machine, it’s very easy to operate it.
-
Block ice can be changeable: 5-100kg per piece, we can also design according to customers’ special requirements.
-
Anti-corrosion material: Stainless Steel 304 for ice cans and salt water tank, it is a good material anti-rust and anti-corrosive, the ice is clean and beautiful, meanwhile the lifespan can be longer.
-
Industrial salt water as media for making ice: We use salt water to make ice, so the refrigeration system is simple, that will assure the simple operation and simple maintenance, very easy to look after and use it.
-
Power consumption: about 80-100KW*H to make 1 ton ice, it depends on the ambient temperature.
Water consumption: about 1.1 tons water to make 1 ton ice.

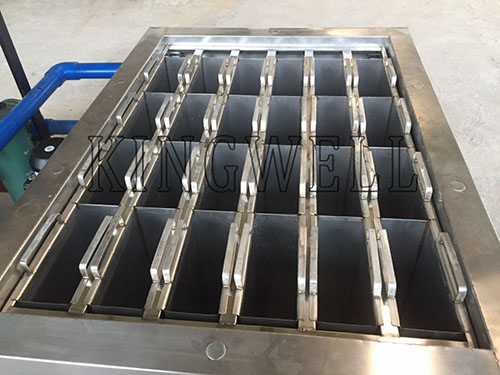

Salt water tank with ice cans (stainless steel 304)

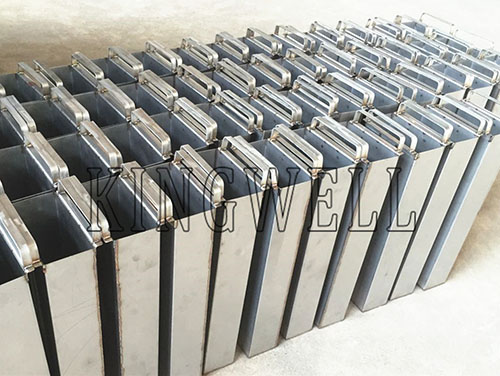

Ice cans (stainless steel 304)
Specifications
|
Item |
Capacity |
Refrigerant |
Compressor Brand |
Compressor |
Cooling |
Dimension |
|
KW-B 1 |
1 |
R22/R404A |
Maneurop |
4 |
Air |
2300*1400*660 |
|
KW-B 2 |
2 |
R22/R404A |
Maneurop |
8 |
Water/Air |
2450*1010*960 |
|
KW-B 3 |
3 |
R22/R404A |
Bitzer |
12 |
Water/Air |
2550*1320*1100 |
|
KW-B 4 |
4 |
R22/R404A |
Bitzer |
20 |
Water |
2850*1600*1100 |
|
KW-B 5 |
5 |
R22/R404A |
Bitzer |
25 |
Water |
3600*1450*1200 |
|
KW-B 6 |
6 |
R22/R404A |
Bitzer |
25 |
Water |
3290*2007*1300 |
|
KW-B 8 |
8 |
R22/R404A |
Bitzer |
40 |
Water |
5250*1620*1170 |
|
KW-B 10 |
10 |
R22/R404A |
Bitzer |
50 |
Water |
6080*1700*1130 |
|
KW-B 15 |
15 |
R22/R404A |
Bitzer |
2*40 |
Water |
7000*2000*1130 |
|
KW-B 20 |
20 |
R22/R404A |
Bitzer |
2*50 |
Water |
9985*2007*1200 |
|
KB-B 25 |
25 |
R22/R404A |
Bitzer |
3*40 |
Water |
10400*2657*1500 |
|
KW-B 30 |
30 |
R22/R404A |
Bitzer |
3*50 |
Water |
7785*1973*1650*2 |
》 Power supply：380~415V, 50Hz, 3 phase;
220~240V, 60Hz, 3 phases;
440~480V, 60Hz, 3 phases;
80V, 60Hz, 3 phases.
》 Working Conditions: Input Water Temp: 21℃;
Ambient Temp: 25℃;
Condensing Temp: 40℃;
》The actual capacity will be changed by different ambient temperature and make-up water temperature, actually it will reach at least 80%, at most 130%.
》 Guangzhou Kingwell reserves the right to change specifications and design without notice.
