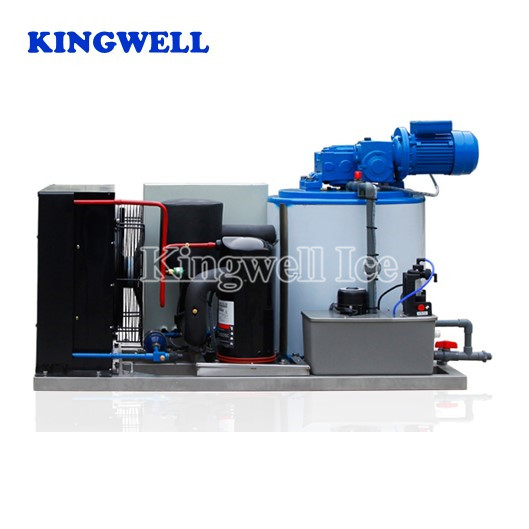

KW-F1 (1ton/day) Flake Ice Machine
Flake ice
Kingwell 1 ton flake ice machine KW-F1 (we’ll call this machine in short of KW-F1 below) can produce 1 ton flake ice in 24 hours.
The flake ice is pure, dry, smooth without any edges, it will not damage the cooling stuff. It is widely used to keep fresh of meat, chicken, fish, seafood, vegetables etc. And it often appears in markets, supermarkets, fishing boats, etc.
Features of the machine KW-F1
-
Simple refrigeration system: easy to operate and maintain, very less fault.
-
Compact design: we use air cooling condenser to cool the machine, so there is only one part. So easy to ship and install.
-
Storage room for flake ice: We can design a storage bin (like the picture showed) to install flake ice temporary.
-
Power consumption: about 70-80KW*H to make 1 ton ice, it depends on the ambient temperature.
Water consumption: about 1.05 tons water to make 1 ton ice.

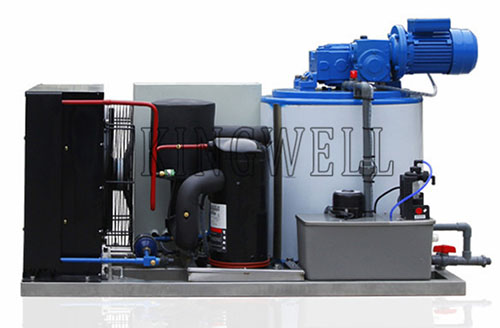

Ice machine with storage bin
Specifications
|
Item |
Capacity |
Refrigerant |
Compressor Brand |
Compressor |
Cooling |
Dimension |
|
KW-F 05 |
0.5 |
R22/R404a |
Danfoss |
3 |
Air |
1420*800*1020 |
|
KW-F 1 |
1 |
R22/R404a |
Danfoss |
6 |
Air |
1420*840*1080 |
|
KW-F 2 |
2 |
R22/R404a |
Manuerope /Bitzer |
10/8 |
Air |
1770*1120*1220 |
|
KW-F 3 |
3 |
R22/R404a |
Bitzer |
12 |
Water/Air |
1770*1130*1330 |
|
KW-F 5 |
5 |
R22/R404a |
Bitzer |
25 |
Water/Air |
2100*1500*1580 |
|
KW-F 8 |
8 |
R22/R404a |
Bitzer |
40 |
Water |
2400*2200*1850 |
|
KW-F 10 |
10 |
R22/R404a |
Bitzer/Hanbell |
40 |
Water |
2800*2200*2020 |
|
KW-F 20 |
20 |
R22/R404a |
Bitzer/Hanbell |
90 |
Water |
3600*2200*2560 |
》Power supply: 380~415V, 50Hz, 3 phase;
220-240V, 60Hz, 3 phases;
440~480V, 60Hz, 3 phases;
380V, 60Hz, 3 phases.
》Working Conditions: Input Water Temp: 21℃;
Ambient Temp: 25℃;
Condensing Temp: 40℃;
》 The actual capacity will be changed by different ambient temperature and make-up water temperature, actually it will reach at least 80%, at most 130%.
》 Guangzhou Kingwell reserves the right to change specifications and design without notice.
